Safety Joint

Product Detail

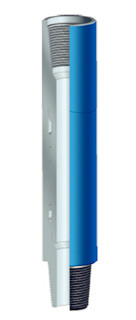

Type H Safety Joint

Technical Feature

H type safety joint, which is installed on the position required for subsurface drill stem and can bear in fishing operation all kinds of loads for pulling or pressing and used to transmit torque, is a subsurface safety equipment. In down hole operation, in case of being needed, the safety joint is easy to be discharged off so as to take out the drill stem above it. It is easy to butt the safety joint to go on fishing operation when running in hole again.

Technical parameters

Model	Product Code	O.D. (mm)	I.D. (mm)	Thread Conn
HAJ89	A020890	89	15	NC26
HAJ95	A020950	95	20	NC26
HAJ105	A021050	105	30	NC31
HAJ121	A021210	121	38	NC38
HAJ159	A021590	159	50	NC46 , NC50
HAJ165	A021650	165	50	NC46 , NC50
HAJ178	A021780	178	57	NC50 , 5 1/2FH
HAJ203	A022030	203	71.4	6 5/8 REG

Technical Feature

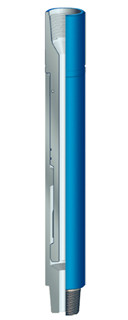

AJ type safety joint is a specialized joint consisting of two parts. The specialized joint takes protective effect for drilling stem in drilling , repairing and test oil (gas) engineering, etc. It is used to treat well bottom accident and used to be on -the -way test in drilling and coring operation. It is connected to the required position of drilling stem to protect drilling stem without any influence on the normal working of drilling tool.

Technical parameters

Model	Product Code	O.D. (mm)	I.D. (mm)	Thread Conn
AJ-C86	A010860	86	38	NC26
AJ-C95	A010950	95	44	NC26
AJ-C105	A011050	105	51	NC31 , 2 7/8NU , 2 7/8EUE
AJ-C121	A011210	121	57	NC38
AJ-C159	A011590	159	71.4	NC46 , NC50
AJ-C165	A011650	165	71.4	NC50
AJ-C178	A011780	178	71.4	NC50 , 5 1/2FH
AJ-C203	A012030	203	76	6 5/8REG
AJ-C228	A012280	228	76	7 5/8REG
