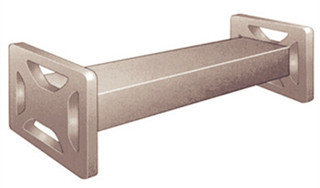

Ditch Magnet

Technical Features

The ditch magnet is the best available and most effective means of trapping and removing metal particles from the drilling mud that the shale shaker will not get this until capture all metals having magnetic attraction and hole them until they can be removed from the mud stream. The magnet is particularly valuable during milling operations. Removal of mill cuttings and debris reduce wear of mud pumps and other equipment, as well as eliminating problems caused by the return downhole of harmful debris. They are equally effective during washover and fishing jobs.

Structure

The ditch magnet is made of a high performance magnet. It features simplicity, strong magnet field, ruggedness and high power to weight ratio.

Operation

No special instructions are required to operate the ditch magnet. It is most effective when suspended by soft line in the mud ditch. It may also be suspended by soft line in the shaker discharge. When the cuttings or debris are enough and need to it removed, take off the magnet and open the inserting plate from the end with pull rod, pull out it magnet pole body, the cuttings and debris will drop down. The magnet body shall be cleaned with fresh water and assemble again for use

Maintenance

The unit should be cleaned several times per day depending on milling rate. Just remove the magnet and clean with fresh or salt water hose. Wipe all cuttings from the unit and return it to duty. The unit may be cleaned less often during other operations when return cuttings come slower.
