Releasing spear

Technical features

Releasing spear provide a positive means to engage and retrieve an internal fish form the well. It is ruggedly built to withstand severe jarring and pulling strains. It engages the fish over a large area without the damage of the fish. The simple design avoids the problem of small parts lost or damaged in the hole when operation. It may be used with other equipment such as pack-off assemblies and internal cutters. If the fish can not be pulled, the spear may easily be released and disengaged.

Construction

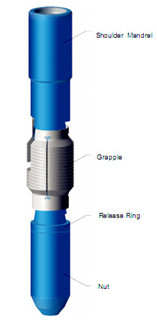

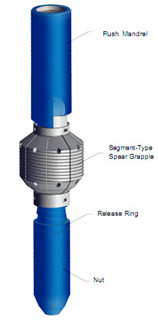

The releasing spear consists of a mandrel, grapple, releasing ring, and a bull nose nut. The mandrel is made of specially heat treated high strength alloy steel; and may be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish. Size and type of the upper box connection is provide according to customer’s exact specification.

When order please specify:

l   The model of the releasing spear

l   Top connection

l   The exact size and weight of the fish

l   Plush or shoulder type mandrel

Technical parameters

model	Product code	Mandrel O.D (mm)	Catch size (mm)	Thread conn.	Allowed load (KN)
LM-T60	L02-110	86	47.4-51.8	NC26	270
LM-T89	L02-130	121	70-77.8	NC38	650
LM-T102	L02-140	121	82-90.1	NC38	800
LM-T127	L02-160	165	102-115.8	NC50	1300
LM-T140	L02-170	165	118.6-27.3	NC50	1500
LM-168	L02-180	165	140-153.7	NC50	2200
LM-T194	L02-200	165	168.3-178.5	NC50	2300
LM-T245	L02-220	197	216.8-228.7	6 5/5REG	2500
LM-T273	L02-230	197	240-258.6	6 5/5REG	2500
LM-T340	L02-240	197	313.6-323	6 5/5REG	2500
