Rotary Kelly

Kelly is the drive part of whole drill string, it transmit the torsional energy from the rotary table to the bit in the bottom of the hole. Precision-machined Kelly is a heavy square or hexagonal steel bar supported by the swivel through the rotary table and connected to the first joint of drill pipe in the drill string.

Kelly has been approved by the NS-1 certification. Straightness is the key manufacturing process. Straightness is checked before, during and after each machining operation. Flats are precision-milled to API and NS-1 specifications. All milling is performed on specially designed rigid Kelly mills. Each Kelly is furnished with a pressed steel thread protectors

Technical Features

l   Manufactured form AISI 4145H-modified, fully heat-treated alloy steel with a Brinell hardness range of 285-341 and a minimum average Charpy impact value of 40 ft-lbs;

l   Ends and drive sections, IDs and connections machined and inspected to API and NS-1 specifications;

l   Kelly bars ultrasonically inspected over full length and section’

l   Shipped in a protective steel-cased scabbard;

When Ordering Please Specify:

l   Kelly type (square or hexagonal);

l   Nominal size and overall length;

l   Upper and lower connections.

Technical Parameters

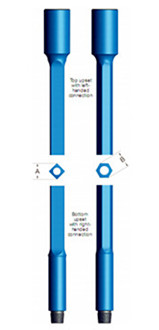

Nom size (in)	Square Kelly code	Hexagonal Kelly product code	Top connection(LH)		Bottom connection		I.D.(in)		Drive section(in)
			Standard O.D.(in)	Optional O.D.(in)	Square O.D.(in)	Hex. O.D.(in)	Square	Hex.	A	B
2 1/2	Z03-130000	/	6 5/8REGLH 7 3/4	4 1/2REGLH 5 3/4	NC26 85.7	/	1 1/4	/	3 1/4	/
2	Z03-130100	Z04-130000			NC31 4 1/8	NC26 3 3/8	1 3/4	1 1/4	3 3/8	3 3/8
3 1/2	Z03-130200	Z04-130100			NC38 4 3/4	NC31 4 1/8	2 1/4	1 3/4	4 7/16	4
4 1/4	Z03-130300	Z04-130200			NC46 6 1/4	NC38 4 3/4	2 13/16	2 1/4	5 1/2	4 4/5
	Z03-130400	Z04-130300			NC50 6 3/8	NC46 6 1/4	2 13/16	2 1/4	5 1/2	4 4/5
5 1/4	Z03-130500	Z04-130400		/	5 1/2FH 7	NC50 6 3/8	3 1/4	3	6 3/4	5 29 32
	Z03-130600	Z04-130500			NC56 7	5 1/2FH 7	3 1/4	3 1/4	6 3/4	5 29/32
6	/	Z04-130600			/	NC56 7	/	3 1/2	/	6 13/16
		Z04-130700				NC26 3 3/8		3 1/2		6 13/16
