Fixed Diameter Hole Opener

Technical Features

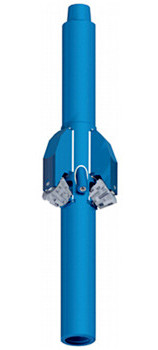

Fixed diameter hole openers are used for expanding the drilled hole. The cutters are manufactured under the severe quality control. All our hole openers are field maintainable, with easy assembly and disassembly. They are all equipped with 3 or 4 cutters, as well as mud nozzles precisely located to clean the cutters and the hole simultaneously.

They are used for the following purposes:

1.      When drilling of the big hole is not possible because of the rig capacity.

2.      When a satisfied penetration rate is not obtained in case of the big hole drilling, it is used after drilling with smaller bit.

3.      When the hole direction must be controlled.

When ordering please specify:

l   Hole size to desire;

l   Pilot hole size;

l   Top and bottom connections;

l   Fishing neck and bottom neck O.D and length;

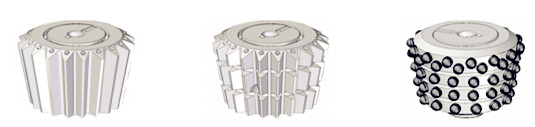

l   Type of cutters.

Technical Parameters

model	Product code	Hole open diameter	Qty of cutters	Min. pilot hole	Fishing neck diameter	I.D	Top connection (pin)	Bottom connection (box)	Overall length
KKQ216	KL10000	8 1/2”	3	5 1/2”	6 1/2”	1 1/4”	4 IF	3 1/2REG	55”
KKQ311	KL01000	12 1/4”		8 1/2”	8”	1 1/2”	6 5/5REG	6 5/5REG	55”
KKQ406	KL02000	16”		10”	9 1/2”	2 1/4”	7 5/5REG	6 5/5REG	59”
KKQ444	KL03000	17 1/2”							59”
KKQ559	KL04000	22”		12 3/4”					69”
KKQ584	KL05000	23”			10”	3”			69”
KKQ610	KL06000	24”		14”				7 5/5REG	69”
KKQ660	KL07000	26”		17 1/2”					69”
KKQ813	KL11000	32”							79”
KKQ4-914	KL08000	36”	4	26”	10”	3 1/2”	7 5/5REG	7 5/5REG	87”
