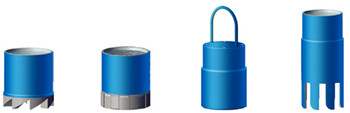

Reversing Circulation Junk Basket

Technical Features

Reverse circulation junk basket is designed to remove all types of small junk objects from the hole. The main feature of the tool eliminates pulling a wet string. Even when the tool is fitted with a magnet insert, reverse circulation is maintained.

Operation

Reverse circulation junk basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (when the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10-inch core has been cut. Stop rotation and circulation and pull the tool from the hole.

Technical Parameters

model	Product code	OD of barrel (mm)	Max. fishing size (mm)	OD of steel ball (mm)	Connection (box)	Hole size (mm)
LL-F381	L11-381000	381	279	57	65/8REG	406-444
LL-F301	L11-301000	301	216	57	65/8REG	320-346
LL-F257	L11-257000	257	194	57	65/8REG	273-295
LL-F200A	L11-200000	200	154	42	NC50	212-241
	L11-200100				4 1/2REG
LL-F159	L11-159000	159	120.6	34	4 1/2REG	168-187
LL-F114	L11-114000	114	77.8	28	NC31	117.5-127
	L11-114100				2 7/8REG
LL-F130	L11-130000	130	95.2	34	NC31	143-152
	L11-130100				3 1/2REG
LL-F97	L11-97000	97	62	30	NC26	108-114
LL-F89	L11-89000	89	57	23	NC26	95-102
