X-mas Tree

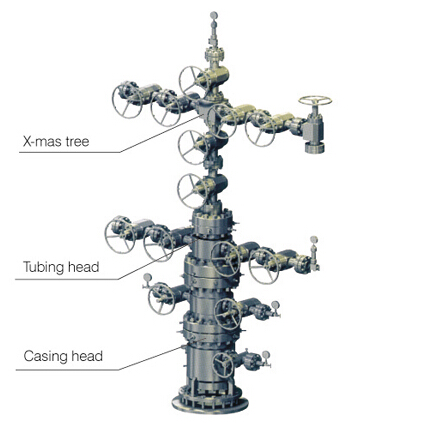

Oil gas production christmas trees

These units are used to control wellhead pressure and adjust oil/gas flowrate.
Structural models:single-wing or dual-wing;single-string or dual-string integrated.
The trees can be fitted with the hydraulic or pneumatic safety value and also with the control panel to implement remote control.
Type of choke value:fixed or adjustable.

Working pressure psi(Mpa)	2000~15000 (14~105)	Nominal Size in( mm)	2 1/16~4 1/16 (52~103)
Production Specification Level	PSL 1~4	Material Class	AA~FF
Performance Requirement Level	PR1~2	Rated Working Temperature	P.U -29~121℃
Applicable Medium	Crude oil,Natural gas	Connection Type	Flange or Clamp
