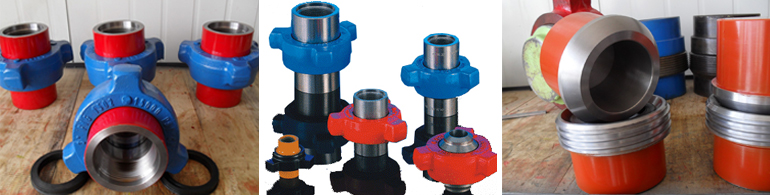

High-pressure hammer union






The high-pressure union is made of forged high-strength alloy steel with advanced technology introduced from abroad. Strict heat treatment ensures that the joints provide uniform metallographic structure and good load-carrying capacity. All the materials used fully comply with the standard of ASTM and AISI,and the technological specifications fully comply with the API Spec 16A standards. The products are reliably sealed. And can be easily and quickly connected to or removed from the pipeline. Furthermore ,these unions can be used interchangeably with the others of a similar kind. The products can be connected to the pipes by using different end connections such as pipe thread, tubing thread,butt welding and pressure-seal end connections.

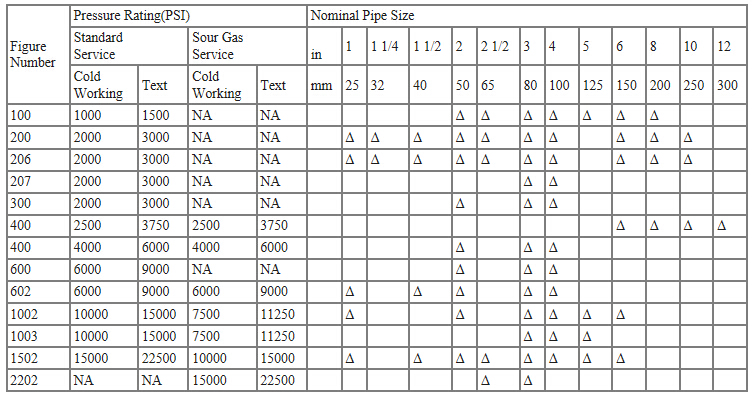

The models of high pressure union  are as followings: model 100, model 200, model 206, model 207, model 211, model 300, model 402, model 600, model 602, model 1002, model 1003, model 1502, model 2002, and model 2202.
