High Pressure Tee&Cross

Product Detail

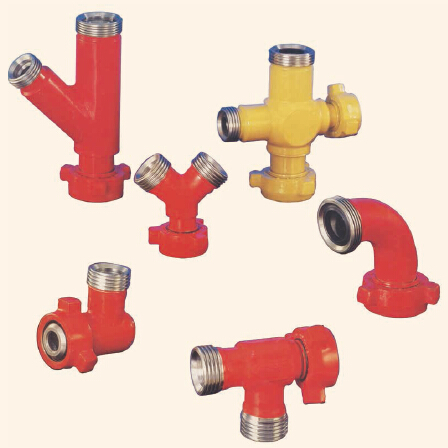

  High Pressure Tee



High pressure pipe fittings,mainly including the elbow,tee,cross,reducer,union and so on,are widely applicable for fluid transportation.All fittings are forged by the use of alloy steel under the strict heat treatment process,which are suitable for sour service.The various technical specifications shall be available for many kinds of connections with different pressures,direction angles and bores.




Integral Connector Technical Parameters



Products name	End connection from	Nominal working pressure	Size (inch)
			2#	3#	4#
Short radlus joint	F*F、internal thread、welded joint	42Mpa(6000psi)	√	√	√
L type joint	F*M、M*M	70MPa(10000psi)	√	√	√
		105MPa(15000psi)	√	√
Radlus 90º joint	F*M、M*M	42Mpa(6000psi)	√	√	√
	F*F、welded	70MPa(10000psi)	√	√	√
		105MPa(15000psi)	√	√
T type joint (Tee)	FMF、FMM	42Mpa(6000psi)	√	√	√
	FFM、FMF	70MPa(10000psi)	√	√	√
	MMM、FFF、welded joint	105MPa(15000psi)	√	√
Cross joint (cross)	FFFF、FFMF	42Mpa(6000psi)	√	√	√
	FFMM、FMMM	70MPa(10000psi)	√	√	√
	FMMF、MMMM、welded joint	105MPa(15000psi)	√	√
Y type joint	M*F*F、welded joint	42Mpa(6000psi)	√	√	√
		70MPa(10000psi)	√	√	√
		105MPa(15000psi)	√	√
Manifold type	M*F*F F*F*F	42Mpa(6000psi)	√	√	√
	Welded joint	70MPa(10000psi)	√	√	√
		105MPa(15000psi)	√	√
Fishtall joint (cross manifold)	M*F*F*F	70MPa(10000psi)	√	√
		105MPa(15000psi)	√	√
