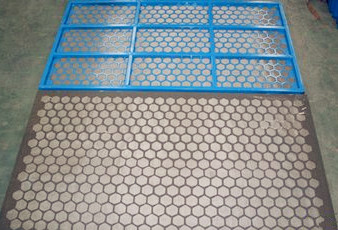

Shale Shaker Screen

Product Detail


    Shale Shaker Screen

    Technical Features

    GN adopt the international most advanced technology to manufacture all kinds of shale shaker screen. GN also supply replaceable screen for all the popular brand shale shakers. As an API certified manufacture GN has the screens mesh from API 20 to API 400.

    Technical Parameters

    API Screen No.

    D100 Separation (Micron)

    API 20

    780.0 to 925.0

    API 25

    655.0 to 780.0

    API 30

    550.0 to 655.0

    API 35

    462.5 to 550.0

    API 40

    390.0 to 462.0

    API 45

    327.5 to 390.0

    API 50

    275.0 to 327.5

    API 60

    231.0 to 275.0

    API 70

    196.0 to 231.0

    API 80

    165.0 to 196.0

    API 100

    137.5 to 165.0

    API 120

    116.5 to 137.5

    API 140

    98.0 to 116.5

    API 170

    82.5 to 98.0

    API 200

    69.0 to 82.5

    API 230

    58.0 to 69.0

    API 270

    49.0 to 58.0

    API 325

    41.5 to 49.0

    API 400

    35.0 to 41.5
