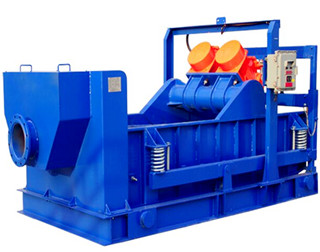

High G Drying Shaker

Product Detail


    High G Drying Shaker

    Technical Features

    l   G force up to 8.0 adjustable for drying solids discharge.

    l   Mechanical shaker deck angle adjustable while working

    l   Patent tighten rubber sealing for shaker deck and screen, long life and easy replacement.

    l   Shaker bottom deck made from Stainless Steel for long service life.

    l   Heat treatment on complete shaker deck for High G force operation.

    l   4 Panel Pretensioned Shaker screen for fast screen replacement.

    l   Famous Brand Vibration Motors: IEC Ex, ATEX and UL Certified

    l   Low Profile Hopper Feeder for easier cuttings transfer.

    Technical parameters

    Model

    CNZS594HGE-LD

    Vibration

    Linear Motion

    Capacity (m³/h)

    140 (616GPM)

    Vibration Motor (Kw)

    2*1.94

    Angle Adjust Motor (Kw)

    0.55Kw

    Screen Qty (Pcs)

    4

    Screen Size: L*w (mm)

    585*1165

    Screen Area (m²)

    2.73

    Adjustable G Force

    ≤8.0G (Adjustable)

    Vibration Amplitude (mm)

    4.4~6.34

    Deck Angle Range

    -1~+5°Mechanical

    Feeding Type

    Hopper Feeder

    Feeding Height (mm)

    895

    EX Standard

    ExdIIbt4/IECEX/ATEX

    Weight (Kg)

    1618

    Dimension: L*W*H (mm)

    2761*2058*1428
