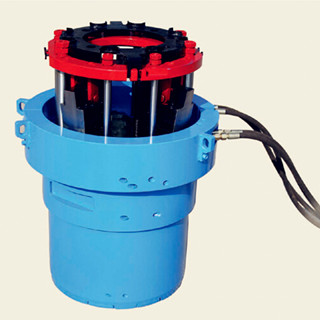

WQ Series of Drill Pipe Air Slip

Technical Features

l  WQ series of drill pipe air slips features auto-clamping and auto-scraping functions during tripping operation.

l  It is an ideal tool and applicable for all kinds of rotary tables.

l  The slips own such advantages: convenient installation, simple operation, safe and reliable, highly automated, and can improve tripping speed.

l  Technical specification meets standard SY/T5049.

l  They are designed and manufactured according to API Spec 7k “Specification for drilling and well servicing equipment”.

Technical Parameters

Model		WQ-175-5 1/2	WQ-205-5 1/2	WQ-275-5 1/2	WQ-375-5 1/2
Suited for which rotary tables		ZP175	ZP205	ZP275	ZP375
Working Pressure	MPa	0.6-0.9
	Psi	87-130
Rated load	kN	225	25000	2500	2500
Pipe range	in	3 1/2、4 1/2 5、5 1/2
Size	mm	443*443*584	520*520*584	697*697*581	481*481*612
	in	17.5*17.5*23	20.5*20.5*23	27.5*27.5*23	19*16*24
Weight	kg	440	620	1020	920
	lb	970	1370	2250	2030
