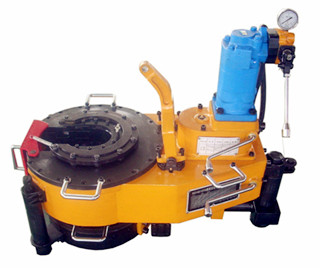

Hydraulic Power Tong

Product Detail

Technical Features

l  XQ series of hydraulic power tongs have inner cam rolling-up clamping mechanism, with a hydraulic backup tong.

l  It is an ideal tool for makeup or breakout of tubings, and small sizes of casings and drill pipes in workover operation.

l  The tong with extra long rod is available for backup tong to grip tubing body.

l  The power tong also can be equipped with automatic torque control system.

l  The tongs are designed and manufactured according to SY/T5074 standard and API Spec 7k “Specification for Drilling and well servicing Equipment”.

Technical Parameters

Model		XQ89/3YC	XQ114/6YB	XQ140/12Y	XQ140/20
Applicable range main tong	mm	60-89	60-114	73-140	60-140
	in	2 3/8~3 1/2	2 3/8~4 1/2	2 7/8~5 1/2	2 3/8~5 1/2
Applicable range backup tong	mm	60-114	73-141.5	89-156	60-153.7
	in	2 3/8~4 1/2	2 7/8~5 1/8	3 1/2~6 1/8	2 3/8~6.05
Max. torque	N.m	3300	6000	12000	20000
	Ft.lbf	2213	4425	8850	15000
Speed	rpm	30-90	20-85	14-72	13.5-58
Rated pressure	Mpa	10	11	12	17.5
	psi	1450	1595	1740	2500
Max. flow	L/min	80	100	120	140
	gpm	21	26	32	38
Size	mm	650*430*550	750*500*600	1024*582*539	1115*962*1665
	in	25.6*16.9*21.7	29.5*19.7*23.6	40.3*22.9*21.2	44*40*65.3
Weight (/w backup tong)	kg	158	220	480	840
	lb	348	485	1060	1840
