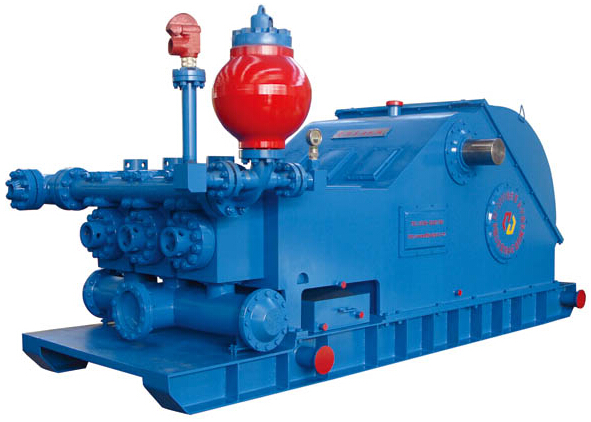

Mud Pump

Product Detail

Technical Characteristics

l  F-1300 and F-1600 drilling pump has a Max. Pump pressure of 34.5 Mpa(5000Psi)and a displacement of 46.5L/S with a liner of φ180 mm. These two models are the first choice for the medium and deep drilling rig as an assorted component.

l  F-1600HL and F-2200HL satisfy mainly drilling requirement of deep and horizontal wells on offshore deep water and land (especially desert).

l  Displacement of F-1600HL drilling pump can reach 51.85L/S; if plunger structure is adopted, the max working pressure can be 52Mpa (7500Psi).

l  F-2200 drilling

l  F-2200HL drilling pump has a maximum displacement of 77,.65L/S(1231GPM) with a liner of 230mm(9”). When the pump has a plunger structure, the maximum working pressure can reach 52 Mpa (7500Psi).

Technical Parameters

Mud pump mode	F-500	F-800	F-1000	F-1300	F-1600
Max. liner dia. Mm	170	170	170	180	180
Rated power kW	368	588	735	960	1180
Rated stroke SPM	165	150	140	120	120
Stroke length mm	191	229	245	305	305
Gear type	Herringbone
Gear ratio	4.286	4.185	4.207	4.206	4.206
Lubrication	Force lubrication and splash lubrication
Valve cavity	API 5”	API 6”	API 6”	API 7”	API 7”
Weight kg	9770	14500	18790	24572	24791
