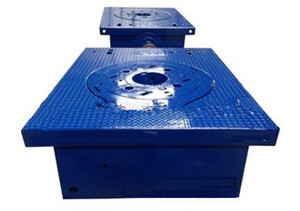

Rotary Table

Product Detail

Technical Features

l   Series travelling blocks conform to API Spec 7K, and are granted the right to use API monogram.

l   Conform to industry standard SY/T5531.

l   The transmission of the rotary tables adopts spiral bevel gear with heavy load. Smooth running and long service.

l   The housing is casting and welding structure with good rigidity, high precision.

l   Reliable the gears and bearings adopt splash lubrication.

l   Input drum shaft is convenient for maintaining and replacing.

Technical Parameters

Model	ZP175	ZP205	ZP275	ZP375
Table opening mm(in)	444.5  (17 1/2)	520.7 (20 1/2)	698.5 (27 1/2)	952.5 (37 1/2)
Static load kN	2700	3150	4500	5850
Max. working torque N.m	13729	22555	27459	32362
Distance from table axis to center innerrow of sprocket teeth mm(in)	1118(44)	1353(53 1/4)	1353(53 1/4)	1353(53 1/4)
Gear ratio	3.75	3.22	3.67	3.56
Max. Speed r/min	300	300	300	300
The center height of input shaft mm	260.4	318	330	330
The width of rotary table bise mm	1016	1120	1270	1450
Overall Dimensions (L*W*H) mm	1972*1372*566	2266*1475*704	2380*1475*690	2468*1920*718
Net weight (include master bushing and exclude sprocket)  kg	4172	5662	6122	7970
