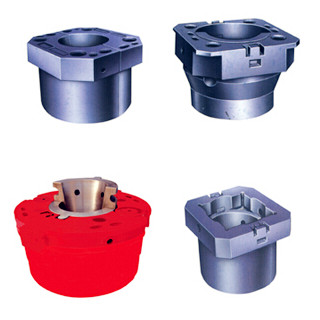

Rotary Bushing and Insert

Product Detail

TRotary Bushing and Insert

Technical Features

l   The rotary bushing is suitable for API standard drill pipe slips, drill collar slips, casing slips and roller bushing.

l   With two structures: solid body and spilt body. Two drive types are available: pin driven and square driven.

l   It is designed and manufactured according to API Spec 7k “Specification For Drilling and well servicing Equipment”.

Technical Parameters

Model	Rotary table size (in)	Insert bowl	Tubular OD (in)
MSS (Solid)	17 1/2-23	Insert bowl 1011	2 3/8-7 5/8
		Insert bowl 1024	2 3/8-8 5/8
	27 1/2	Insert bowl 1022	2 3/8-7 5/8
		Insert bowl 1025	11 3/4-13 3/8
		Insert bowl 1026	9 5/8-10 3/4
		Insert bowl 2002	11 3/4-13 3/8
MSS (Split)	17 1/2-27 1/2	/	2 3/8-7 5/8
MSPC (Solid)	20 1/2- 22 1/2	Insert bowl 1809	2 3/8-8 5/8
		Insert bowl 1902	9 5/8-10 3/4
		Master bushing 1805-1	11 3/4-13 3/8
		Master bushing 19333	9 5/8-10 3/4
	23-27 1/2	Insert bowl 1810	2 3/8-8 5/8
		Insert bowl 1904	9 5/8-10 3/4
		Insert bowl 1903	11 3/4-13 3/8
MDSP (Split)	17 1/2-20 1/2	/	2 3/8-8 5/8
MSP (Split)	27 1/2	/	2 3/8-8 5/8
MPCH	37 1/2	Insert bowl 6608	2 3/8-8 5/8
		Insert bowl 6609	9 5/8-10 3/4
		Insert bowl 6610	11 3/4-13 3/8
	49 1/2	MPCH 37 1/2	2 3/8-13 3/8
