Annular BOP

Product Detail

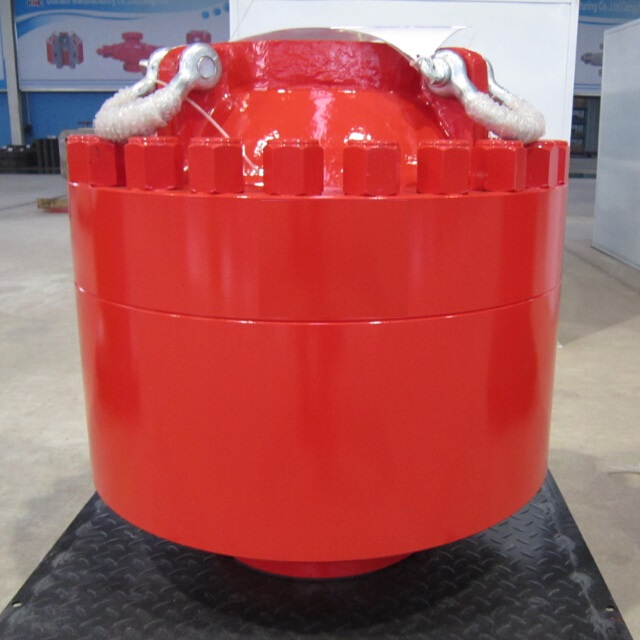

    Annular BOP Product features1429757127118599.jpg

    Structural style:Shaffer style.Hydril style
    According to the latest API Spec 16A standard
    According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim.


    Technical parameters

    Working pressure :2,000psi ~ 10,000psi
    Nominal Size :7 1/16"~  26 3/4"
    Working Medium :oil, gas, mud, Gas containing H2S, CO2
    Working Tem.:T-75(-59℃~121℃)
    Material Class :45K~75K

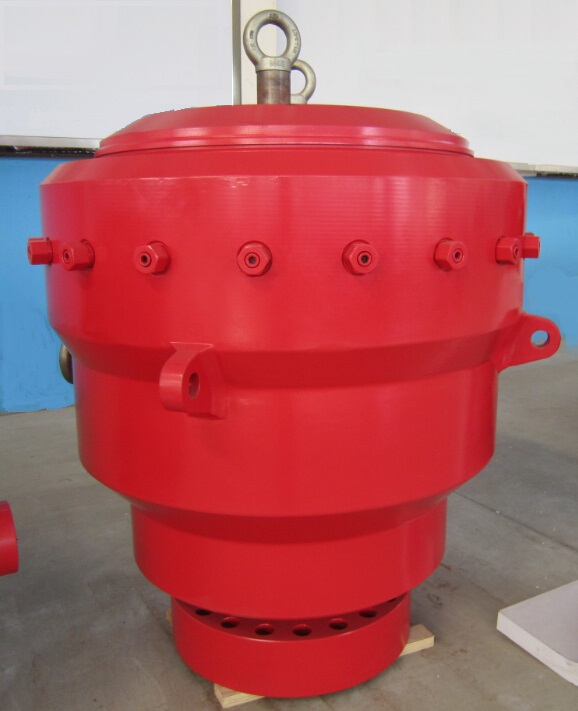

    Top connection: (7-1/16″-3000psi 6B R45 SST Studded)~(26 3/4″-10000psi 6B BX168 SST Studded)1429764767241107.jpg

    Bottom connection: (7-1/16″-3000psi 6B R45 SST Flanged)~ (26 3/4″-10000psi 6B BX168 SST Flanged)

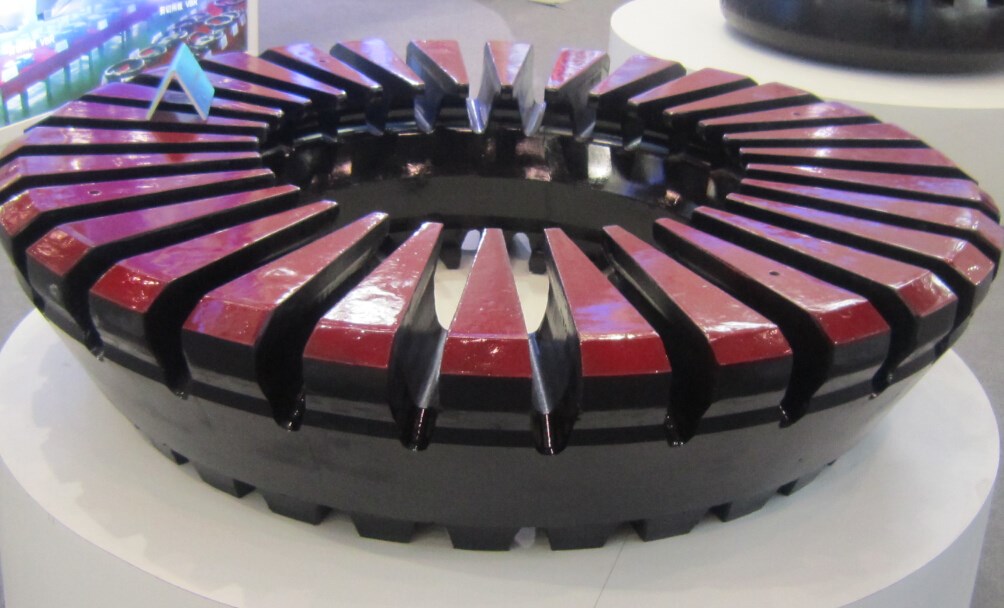

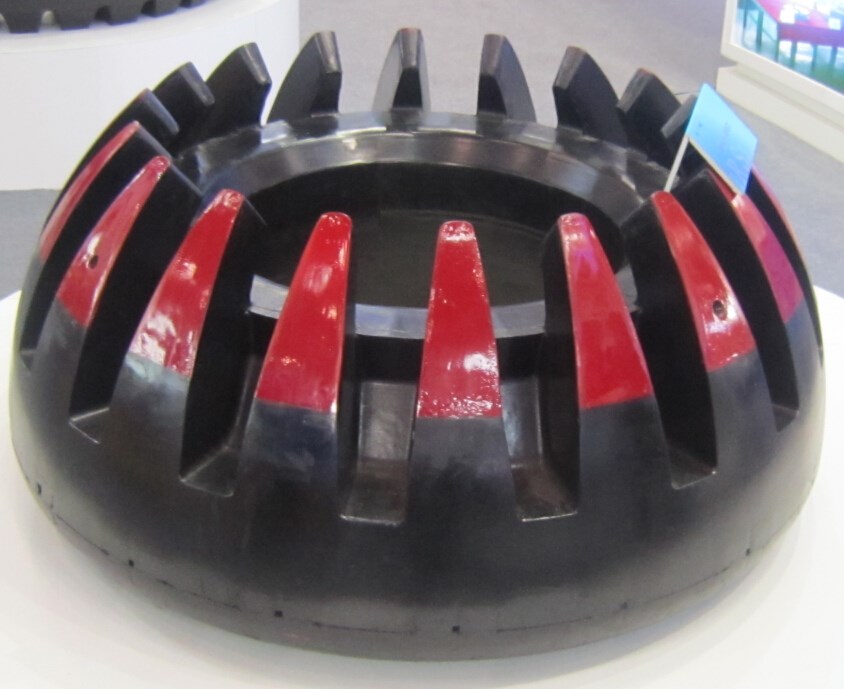

    1429766441633642.jpg  1429766441563156.jpg
