Releasing And Circulating Overshot

Product Detail

SERIES 150 OVERSHOT

150 Releasing and Circulating Overshot is an external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drill pipe. The grapple of the overshot can be designed for different sizes of fish, so one overshot can be dressed with different size of grapple components for fishing different sizes of fish.

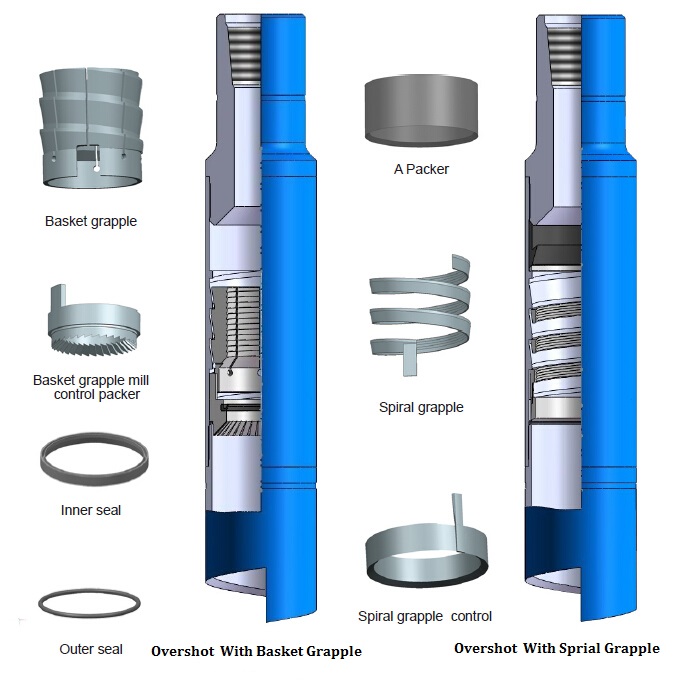

150 Overshot consists of three outside parts: Top Sub, Bowl, and Standard Guide. The Basic Overshot may be dressed with either of two sets of internal parts, if the fish diameter is near the maximum catch of the Overshot, a Spiral Grapple, Spiral Grapple Control, and Type “A” Packer are used. If the fish diameter is considerably below maximum catch size (½” or more) a Basket Grapple and a Mill Control Packer are used.
When order please specify:
● The model of the overshot
● The hole, casing size or o.d. of overshot
● Top connection
● O.D of the fish



FS = Full Strength
SH = Slim Hole

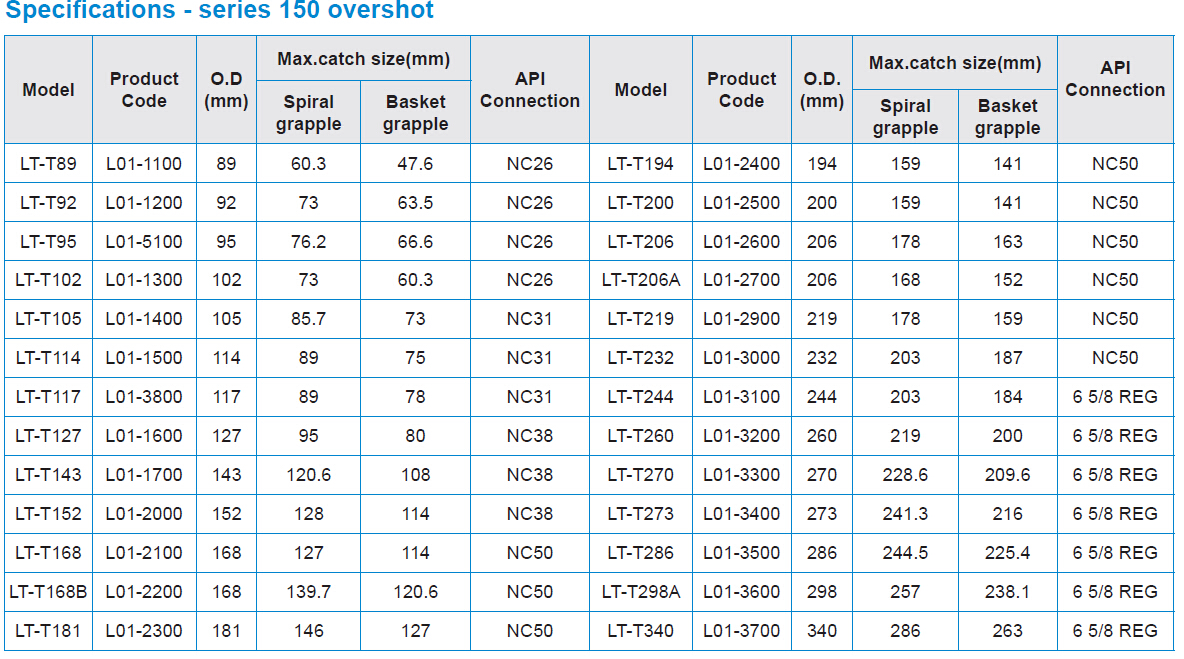

SERIES 150 OVERSHOT ACCESSORIES

150 Releasing and Circulating Overshot can be equipped with a wide range of accessories to meet a variety of complex fishing environmental.

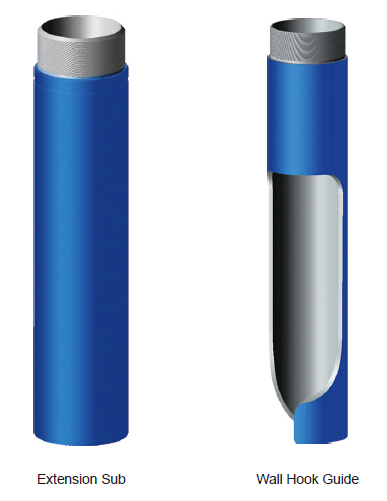

Extension Sub
An extension sub is assembled between the top sub and the bowl.It is used when the upper portion of the fish is damaged or cannot be engaged. This accessory will permit the overshot to be lowered far enough over the fish to ensure secure engagement and pack off. They are available in lengths from 24 to 60 inches. When ordering, specify overshot O.D. Unless otherwise specified Extension Subs will be furnished in a standard 36-inch length.









Wall Hook Guide
If the fish is positioned in a washed out section of the hole, it may be difficult to engage the top of the fish using a conventional overshot guide. A wall hook guide can be used to capture the neck of the fish, centralize it, and then properly guide the fish into the bowl.

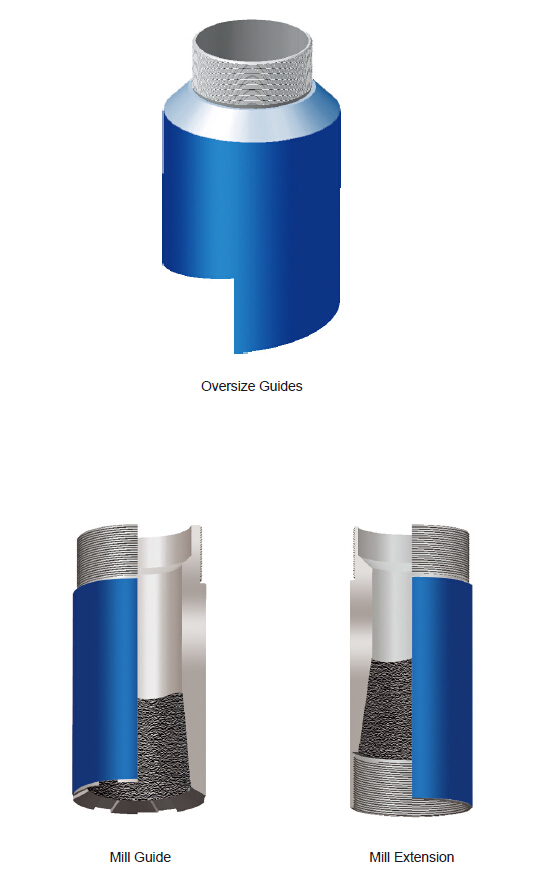

 Oversize GuideOversized Guide properly guides the fish into the overshot when the hole size is considerably larger than the diameter of the fish and the overshot may pass alongside the fish without engaging it. Installation of an oversized guide instead of a standard guide will ensure alignment of the fish with the overshot.






 Mill Extension
Overshot Mill Extension interiors are faced with ltcoloy to a size that will mill away a flared or jagged fish to enable it to pass up into and be engaged by the Grapple in the Bowl. Mill Extensions are installed between the Bowl and the standard, oversize or wall hook guides.






 Mill Guide
Overshot Mill Guides are designed to remove badly flared or jagged metal from the top of the fish. Mill Guides are used in place of the Standard or Oversized Guide to trim the fish so it can enter the overshot.
