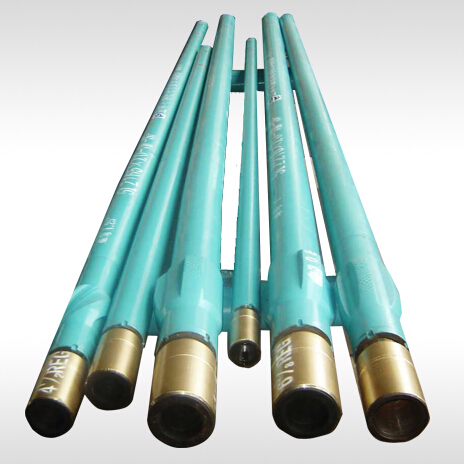

Downhole Motor

Product Detail

ERT(Even Rubber Thickness):

Reasonable to change the shape of stator housing, the stator elastomer layer of Uniform Thickness downhole motor is thin and even. The characteristics of the downhole motor are short length, high power, high pressure drop, low rotate speed, high cooling efficiency, even thermal expansion, more widely used, more optimized structure and the lighter mass. Especially, the characteristics can prolong downhole motor's life and improve drilling efficiency in the ultra-deep well, directional well and high temperature well.


Resistance High-temperature And Oil Based Mud:

The downhole motor is suitable for high-temperature, high oil base mud system. In the conditions of less than 180°C and high oil, specially formulated stator elastomer owns high retention rates of strong force strength, tear strength and other properties. The oil-resistant elastomer with reasonable magnitude of interference has better using effect in the high-temperature, high oil base mud.


Corrosion-resistance:

After corrosion spraying to form special coating, the rotor is better corrosion, erosion and abrasion-resistant. And downhole motor is suitable for long time in the corrosive fluid.


Air Drilling:

Air drilling can protect reservoir well, improve rate of penetration, significantly shorten drilling period, take precaution against mud loss and borehole collapse, now is gradually widely used. Air drilling downhole motor is driven by gas, foam and other compressible fluids, provide power for the downhole and drives bit to penetrate rock. Air drilling downhole motor has higher technical requirements of the assembly structure, linear design of the motor stator and operation specification.

OD	Connect Thread	Lobe	Stage	Flow Rate	Rotary Speed	Working Pressure Loss	Output Torque	Max. Pressure Loss	Max. Torque	Working Pressure
in	Up /down			gpm	rpm	psi	lb-ft	psi	lb-ft	lb
4 3/4	3 1/2REG              3 1/2REG	5:6	5	171-342	140-280	585	1730	824	2442	10803
6 3/4	4 1/2REG            4 1/2REG	7:8	5	312-625	84-168	585	5293	824	7476	22000
8	5 1/2REG            6 5/8REG	7:8	5	295-650	75-150	585	5324	824	7520	34100
9 5/8	6 5/8REG             6 5/8REG	7:8	5	600-1200	68-135	585	11760	824	17720	48400
11 1/4	7 5/8REG             7 5/8REG	3:4	4	750-1500	97-196	466	8731	655	12300	67500
