Hydroscillator

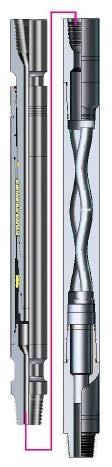

Model ZDQ hydroscillator improves the effectiveness of bit pressure transmission and frictional resistance between BHA (the pit bottom assembly like drill bit, centering guide, extra-heavy drill rod ( drilling tools) except for ordinary drilling rod in drilling process by the longitudinal vibration generated by itself, especially to improve the drilling pressure transmission with a screw, reduce the frictional resistance, cut down the ordinary drilling sticking accidents, increase the dynamic drilling pressure and improve drilling efficiency in directional drilling process.



























 Technical Parameters

Model	ZDQ86	ZDQ121	ZDQ172	ZDQ203
Size mm(in)	86（3-3/4）	121（4-3/4）	172（6-3/4）	203（8）
Length（m）	7.6	7.6	7.9	8.5
Max. Tensile（T）	80	160	290	430
Max. temperature (℃)	160	160	160	160
Operating Pressure Differential (psi)	400~650	450~650	500~700	550~700
Connection	2 7/8 REG	NC38	NC50	6 5/8 REG
Displacement Scope (l/s)	6~10	9~15	25~35	35~55
Pressure excited requenecy(Hz)	19~25	18~19	16~17	16
Recommended Use Life(h)	120	150	200	300
