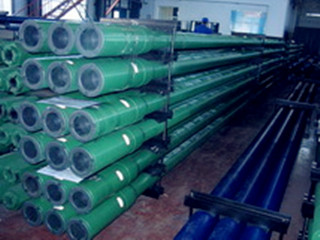

Heavy Weight Drill Pipe

Technical Features

Heavy weight drilling pipe form structures similar to the drill pipe is made of high quality alloy steel production, intermediate its ends and thicker parts of the body joints are welded hardbanding. Technical parameters meet API and ISO9001 standard.










Technical parameters

Size in	Outside diameter (in)	Inside diameter (in)	Joint OD (in)	Joints inside diameter (in)	Buckle-type connection	The maximum diameter Elevators (in)	Middle thicker diameter (in)	The minimum diameter size (in)
3 1/2	3 1/2	2 1/4	4 3/4 (4 7/8, 5)	2 1/4	NC38	3 7/8	4	2
		2 1/16		2 1/16				1 13/16
4	4	2 1/2	5 1/4	2 1/2	NC40	4 3/16	4 1/2	2 1/4
		2 9/16		2 9/16				2 5/16
4 1/2	4 1/2	2 11/16	6 1/4	2 11/16	NC46	4 11/16	5	2 7/16
		2 3/4		2 3/4				2 1/2
		2 13/16		2 13/16				2 9/16
5	5	3	6 5/8	3	NC50	5 1/8	5 1/2	2 3/4
5 1/2	5 1/2	3 1/4	7 (7 1/4, 7 1/2)	3 1/4	5 1/2 FH	5 11/16	6	3
		3 3/8		3 3/8				3 1/8
		3 7/8		3 7/8				3 5/8
		4		4				3 3/4
6 5/8	6 5/8	4	8 (8 1/4, 8 1/2)	4	6 5/8 FH	6 15/16	7 1/8	3 3/4
		4 1/2		4 1/2				4 1/4
		5		5				4 3/4
