CEMG101 Electronic Pressure Gauge System
Product Detail
CEMG101 Electronic Pressure Gauge System
Technical Features

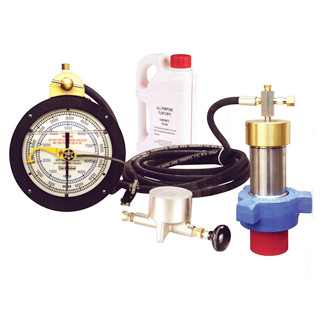

CEMG101 electronic pressure gauge system is made up of there parts:
1. Pump pressure gauge with contacts
2. Hose
3. CWBD4-1 debooster
CWBD4-1 debooster has 1502 union, with NPT 2” threaded, can be connected to the measured pressure source, the sensor for pressure bearing unit. With the CWBD4-1 debooster the high pressure will be change into low pressure according to 4:1 rato, transfer to the pressure gauge which display the measured pressure by high pressure hose. The pressure gauge has a contact type alarm device, used for pressure warning and system control.
Technical Parameters
l Pressure range: Max. is 120MPa.
l Working temperature: -45℃~+60℃
l Accuracy：1.0%
