BOP Control Hose Assembly
Product Detail
High pressure Fire-resistant and Heat-insulation BOP Control Hose Assembly
1. Scope of application the hose for well control high-pressure, fire-resistant and heat- insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high-temperature and flammable places in the metallurgic industry.

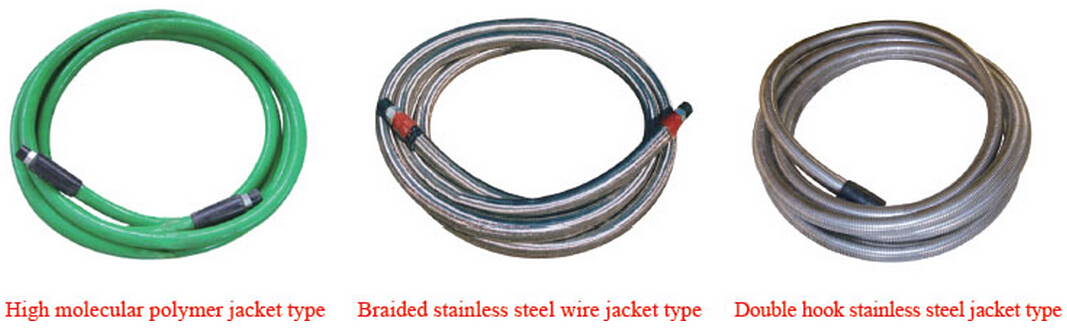

2. Product classification: high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
3. Application standard: API Spec 16D SY/T5053.2-2002
Specification
Nominal inner dia.(mm) | Outer dia. of hose assembly(mm) | Operating pressure(MPa) | Min. burst pressure(MPa) | Min. bending radius(mm) | Thread | Operating time (min)with fire-resisting at 750℃ | |
Normal | Limit | ||||||
19 | 44 | 35 | 105 | 280 | NPT LP | 5 | 25 |
50 | 70 | 175 | |||||
22 | 47 | 35 | 105 | 320 | |||
53 | 70 | 175 | |||||
25 | 50 | 35 | 105 | 360 | |||
56 | 70 | 175 | |||||
31.5 | 56 | 35 | 105 | 460 | |||
62 | 70 | 175 | |||||
38 | 63 | 35 | 105 | 560 | |||
69 | 70 | 175 | |||||
