DQST140-J Electro-Pneumatic

Product Detail


    DQST140-J Electro-Pneumatic

    Technical Features

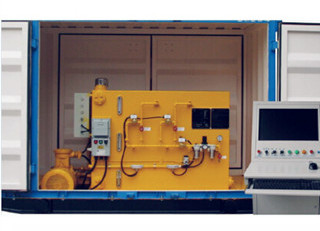

    DQST140-J electro-pneumatic high pressure test unit is a newly developed wireless remote control product. T has two sets of power system, one is electric triplex water pump and the other is pneumatic pump. Electric pump is used for enlarging displacement and pneumatic pump or pressurization. Electric pump, whose displacement reaches 50L/min. is driven by 3 phase AC power. And pneumatic pump is driven by compressed air. The stop pressure can be preset value, air source of pneumatic pumps stop working. As air source pressure is directly proportional to output liquid pressure, the output liquid pressure can be adjusted within a definite range through adjusting air source pressure reach balance, pneumatic pump stops and output liquid pressure remain on preset value.

    This unit is equipped with wireless remote control panel, and it can be controlled remotely and also can monitor, record, print and look back the pressurizing process. Additionally, an A4 paper printer is delivered with the unit, which can print the data curve directly. This unit can has high pressure alarm function and judge whether the pressure test is qualified, so safety and practicability of the unit is highly improved.

    Technical parameters

    Item

    Specifications

    Working pressure

    140MPa (20300PSI)

    Supply power voltage

    380VAC, 3 Phase 4 Wire

    Remote control mode

    Wireless remote control panel

    Air source pressure

    0.7MPa (100PSI)

    Air consumption

    1.5m3/min

    Triplex water pump

    Displacement

    21 L/min

    Nominal working pressure

    35MPa

    Pneumatic pump displacement

    1:60 pneumatic pump 90ml/stroke

    1:200 pneumatic pump 14mL/stroke

    Transmitter signal

    4~20mA

    Ambient temperature

    -10~55

    Ambient humidity

    10~85%RHNon-condensing

    Open pressure of electric pump relief valve

    38MPa

    Open pressure of rough pump relief valve

    48MPa

    Bursting pressure

    168MPa

    Size

    2900L*1560W*2260H

    weight

    3t
