Cement Basket

Product Detail

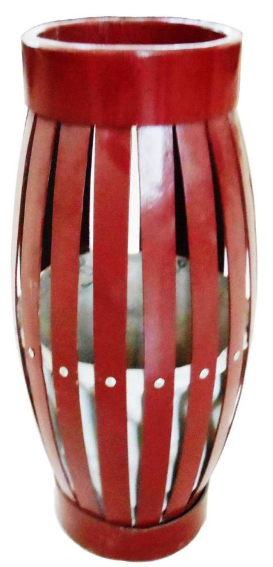

Cement Basket

Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered. It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.

Casing size	NO. of Bows	Total Length	Basket O.D.		Min. Hole Size
In.	NO. of Bows	Total Length	in	mm	in
4 1/2	10	24 1/2	12 1/2	317.5	6
5	10	24 1/2	13	342.9	6
5 1/2	12	24 1/2	13 1/2	342.9	7 1/4
6 5/8	12	24 1/2	14 5/8	371.5	8 3/8
7	14	24 1/2	15	381.0	8 3/8
7 5/8	14	24 1/2	15 5/8	396.9	9 1/2
8 5/8	16	24 1/2	16 5/8	422.3	10 5/8
9 5/8	18	24 1/2	17 5/8	447.7	11 5/8
10 3/4	18	24 1/2	18 3/4	476.3	12 3/4
11 3/4	20	24 1/2	19 3/4	501.7	13 3/4
11 3/8	24	24 1/2	21 3/8	542.9	15 1/2
16	28	24 1/2	24	609.6	18
18 5/8	34	24 1/2	26 5/8	676.3	20 5/8
20	34	24 1/2	28	711.2	22
