Q230 Quintuplex Plunger Pump

Product Detail

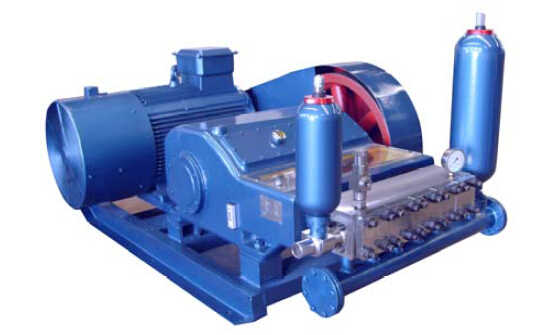

    Q230 Quintuplex Plunger Pump1430883927781543.jpg

    Model Q230 is a single acting quintuplex plunger pump rated at 230 HP in continuous duty services and up to 285 HP in intermittent duty. This versatile pump is offered with a variety of material and design options that make it ideal for general industrial, reverse osmosis, and typical applications involved in the production of oil and natural gas.



    English Units

    Metric Units



    Stroke Length

    89 mm

    Rated bhp


    288 HP

    Rated Rod Load

    12786 lb

    5800 Kg

    Maximum Speed

    360 rpm

    450 rpm

    Pump Weight

    3086 lb

    1400 Kg

    Minimum Speed

    90 rpm

    75 rpm

    Oil Capacity

    18.8 gal

    71 L

    Max. plunger size x stroke   length.


    Max. Fluid Temp

    284 °F

    140 °C

    Crankshaft extension Dia.x   length

    103x223 mm

    Mechanical Efficiency


    Keyway (width x depth x   length)



    other  Model Q300, Q370, Q500, Q600 can also be supplied.
