T125 Triplex Plunger Pump

Product Detail

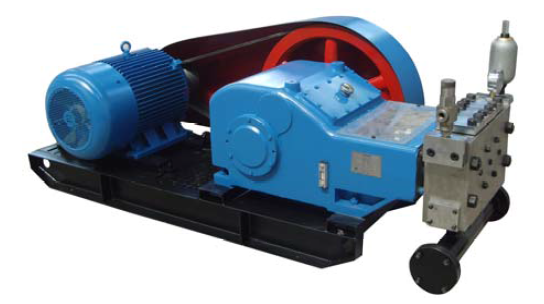

T125 Triplex Plunger Pump

Model T125 is a single acting triplex plunger pump rated at 125 HP in continuous duty services and up to 170 HP in intermittent duty. This versatile pump is offered

with a variety of material and design options that make it ideal for general industrial, reverse osmosis, and typical applications involved in the production of oil and natural gas.





 Specifications

	English Units	Metric Units		Continuous	Intermittent
Stroke Length		80 mm	Rated bhp	125HP	170 HP
Rated Rod Load	12786 lb	5800 Kg	Maximum Speed	380 rpm	495 rpm
Pump Weight	1984 lb	900 Kg	Minimum Speed	90 rpm	75 rpm
Oil Capacity	10 gal	38 L	Max. plunger size x stroke   length.	101x80mm
Max. Fluid Temp	284 °F	140 °C	Crankshaft extension Dia.x   length	86x153 mm
Mechanical Efficiency		90%	Keyway (width x depth x   length)	25x9x145 mm



Model T3, T8, T13, T18, T40, T50, T60, T65, T85, T120, T145, T165, T170, T185, T200, T265, T270, T285 can also be supplied.
