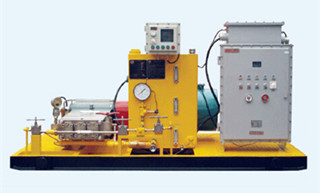

DST105-J Electric Pressure Test Unit

Product Detail

Electric Pressure Test Unit

Technical Features

DST105-J electric pressure test unit is newly developed large displacement high pressure test equipment and it’s powersystem is high pressure plunger pump, which is produced with Germany technology. The plunger pump has much advantage such as running stability, small size, light weight, low noise, easy maintenance and high efficiency. It can be used as effusions in the oil field, power for hydraulic pressure, transportation, cleaning task.

This unit is equipped with an explosion proof inverter motor and an explosion proof inverter. It can be used in hazardous area. It’s displacement can be regulated by changing speed of the motor to control the speed of pressurization. This unit is equipped with a color recorder and can record the data by number of runs. The data also can be transferred to the attached computer via USB port and printed with upper computer software.

This unit can be used in factory or in the field installed on a vehicle.

Technical Parameters

Item	Specifications
Working pressure	105MPa
Supply power voltage	38VAC, 3 Phase  Wire
Motor power	55Kw/50Hz
Displacement of electric pump	-10~50℃
Ambient temperature	120MPa
Outlet	NPT1/2 Female
High pressure hose	Working pressure	150MPa
	diameter	12.7mm
	Outlet	M24*1.5 Female
Recording time	Record gap	1s
	Recording time	12d
Size	3200L*1580W*1640H
weight	2.5t
