Extended Casing Tong

Product Detail

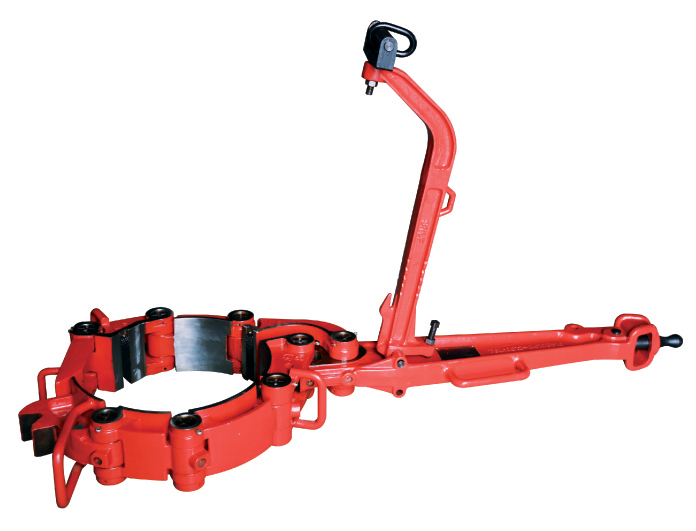

    Extended Casing Tong1430812215188221.jpg

    Casing tongs is casing a tubular structure placed in the drill hole to maintain the well opening and more recently used in the drill process. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.



    No. of Hinge Jaw

    Size Range (mm(in))

    Rated Torque

    kN·m

    in

    mm

    9、8

    133/8~141/2

    340~368.3

    35

    8、7

    141/2~16

    368.3~406.4

    8、9、9

    16~171/2

    406.4~444.5

    8、9、7

    171/2~19

    444.5~482.6

    7、8、7

    19~20

    482.6~508

    9、8、9、7

    20~211/2

    508~546.1

    9、7、8、7

    211/2~23

    546.1~584.2

    9、9、8、7、7

    24~251/2

    609.6~647.7

    9、8、7、7、7

    251/2~27

    647.7~685.8

    8、7、7、7、7

    27~281/2

    685.8~723.9

    9、9、8、7、7、8

    281/2~30

    723.9~762

    9、7、7、7、7、8

    30

    762
