Single-arm Elevator Link

Product Detail

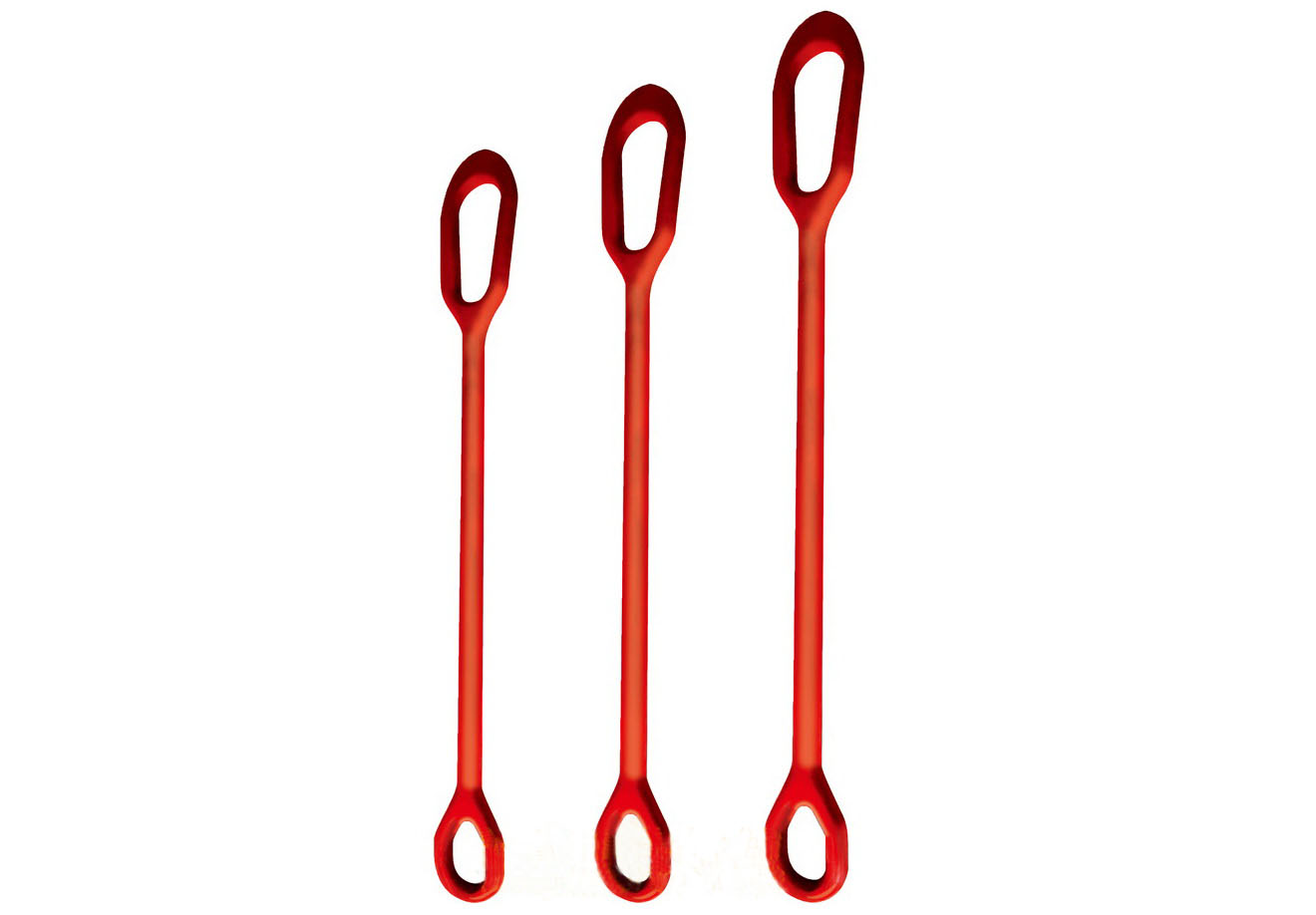

    Single-arm Elevator Link1430796973730335.jpg

    • Adopted high-quality alloy steel and throughout swaged forging process.

    • Designed factor is 2.25-3

    • WORKING LOAD LIMIT: 75~500 UStons.

    • Both the ends are shape by swaged forging process, the pole is pulled by open forging

    • Special Heated Treated.

    • Every link be NDE checking.

    • Every link test by 1.5 rate work load before deliver.

    • There are signs such as WORKING LOAD LIMIT in the link.

    • It is applicable for drilling operation for deep well and super-deep well.

    • Couple use

    Model

    Rated Load (Short tons)

    Standard Length (mm)

    DH50

    50

    1100

    DH75

    75

    1500

    DH150

    150

    1800

    DH250

    250

    2700

    DH350

    350

    3300

    DH500

    450

    3600

    DH750

    750

    3660

    Executve Standard: API Spec 8C
