Steel Wire Spiraled Drilling Rubber Hose

Product Detail

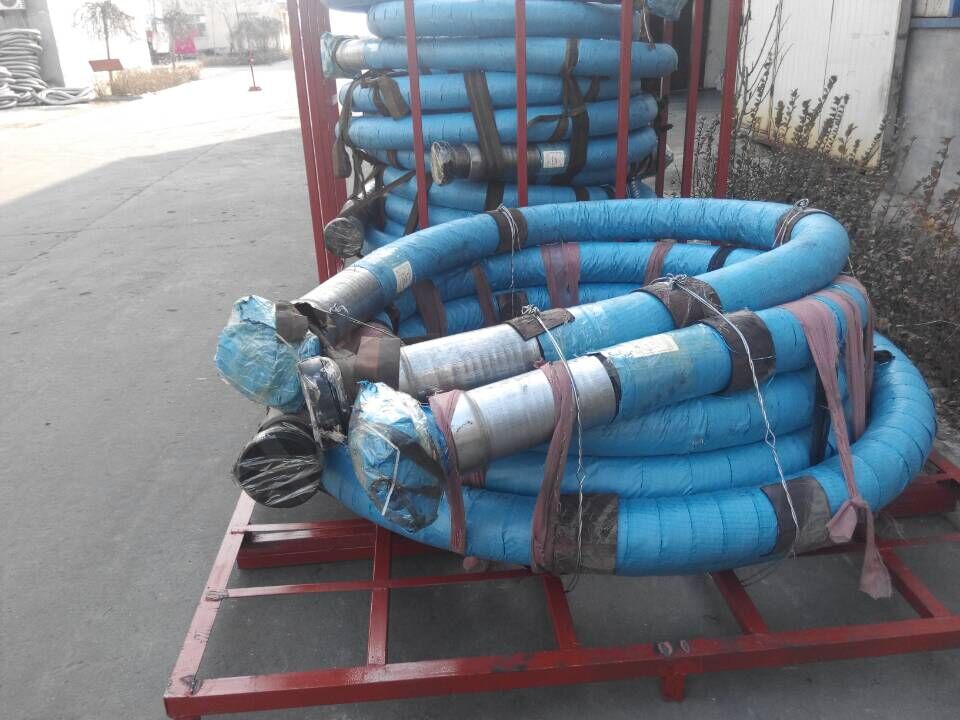

Steel Wire Spiraled Drilling Rubber Hose

Construction



It is composed of an inner rubber protection layer, middle rubber layer, steel wire spiraled layer and external rubber cover.



Applications

Steel wire spiraled drilling rubber hoses are used in oil fields, well cementing, well repairing, geological explorations, small drilling machine, and water conveyance at coal excavations, used to carry slurry, water at environmental temperature, and other fluids.



























Side ID×Layer NO.	Inside Diameter mm	Tolerance mm	Reinforcement Diameter mm		Outside Diameter	Tolerance mm	Working Pressure MPa	Proof Pressure MPa	Burst Pressure MPa	Min.Bend Radius mm	Weight Kg/m
			Size	Tolerance
51×4SP	51	1.0	63	1.0	69	1.5	35	70	140	660	5.70
64×4SP	64	1.2	77	1.0	84	1.5	35	70	140	990	5.78
76×4SP	76	1.4	101	1.5	107	2	35	70	140	1200	16.50
89×4SP	89	1.4	114	1.5	120	2	35	70	140	1300	19.65
102×4SP	102	1.5	132	1.5	135	2	35	70	40	400	20.35
51×6SP	51	1.0	66	1.0	71.9	1.5	70	140	210	860	6.73
64×6SP	64	1.2	81	1.0	85	1.5	70	140	210	1200	8.02
76×6SP	76	1.4	109	1.5	115.5	2	70	140	210	1300	23.0
89×6SP	89	1.4	122	1.5	128.6	2	70	140	210	1400	28.0
102×6SP	102	1.5	135	1.5	142.3	2	70	140	210	1600	30.0



Executive Standard: API Spec 7K
