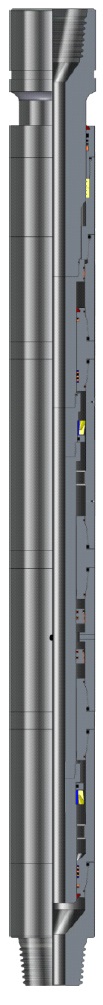

Full-Hydraulic Drilling Jar QY



Full-Hydraulic drilling jar type QY is a double-acting hydraulic jar and is used to free equipment stuck down hole. It can be used with a down hole motor, because it is capable of torque transmission, and is ideal for use in coiled tubing operations, snubbing, rotary drilling and fishing applications. By adjusting the amount of surface push or pull (no torque or external adjustments are required) the operator can deliver very light or maximum impacts in either direction.


Features:
 Model “QY” Hydraulic Drilling Jar can be acted  hydraulically, realizing the stepless control of up-down jarring tonnage.
 It can protect the drill string effectively and improve the using life.
 The hydraulic stored energy mechanism has the advantage of reliable property and good stability.
 The scope of time delay interval: 30S~240S; the scope of service temperature: -40°C~180°C.
 The scope of outer diameter: 80mm~241mm.
 It can adopt the new special material for higher property and safety.
 It can normally used for drilling, coring, work over and fishing etc.





















































 Technical Parameters

Model	O.D mm/in	I.D mm/in	Connection API	Max.Upward jarring force kN/lbf	Max.Downward jarring force kN/lbf f	Max.Working load kN/lbf	Tensie Yield strength kN/lb	Max.Working Torque kN·m/lbf·f	Overall Length Mm/in
QY80	80 3-1/8	25.4 1	2 3/8REG	150 34000	60 13500	350 78000	600 130000	3 2200	5550 218.5
QY121	121 4-3/4	50 2	NC38	350 79000	180 40000	930 209000	1400 315000	15 11000	9801 385.86
QY165	165 6-1/2	57 2-1/4	NC50	700 160000	350 79000	600 360000	2450 550000	25 18000	9830 387
QY203	203 8	71.4 2-13/16	6 5/8REG	1000 225000	500 112000	2800 630000	4450 1000000	35 25800	9918 390.47
QY241	241 9-1/2	76 3	7 5/8REG	1250 280000	650 146000	3500 787000	8100 1820000	40 29500	9908 390.47

 Above list some models, other models also can be supplied as follows:QY95（3-3/4”）,QY159(6-1/4” ),QY178(7”),QY229(9”).
