Cementing Plug

Product Detail

Cementing Plugs

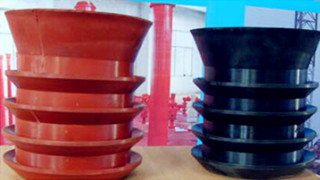

The Top Cementing Plug and Bottom Cementing Plug comply with API standards. Top Cementing Plug, also known as Plug, can be individually applied to single plug cementing. Top Cementing Plug is solid, Bottom Cementing Plug is hollow and has a rubber membrane separated.

Plug body material is nitrile rubber, Plug core material is aluminum alloy, can be used PDC drill bit or rock bit addition.

Technical Features

l   The cementing plugs can effectively isolate cement slurry from drilling fluid, eliminating slurry contamination.

l   The non-rotating design saves drill-out time.

l   Cementing Plug rubber material can withstand oil, acid, alkali.

Technical parameters

Size inch	O.D., mm	Length mm	Bottom Cementing Plug Rubber membrane burst pressure, MPa
4½"	114	210	1~2
5"	127	210	1~2
5½"	140	220	1~2
6⅝"	168	230	1~2
7"	178	230	1~2
9⅝"	240	260	1~2
10¾"	270	300	1~2
13⅜"	340	350	1~2
18⅝"	473	400	2~3
20"	508	400	2~3
