Model Dsc Single Plug Cement Head

Product Detail

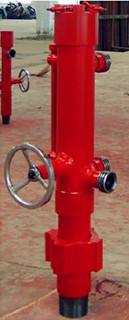

Model Dsc Single Plug Cement Head

Special tool for pumping slurry and releasing plug.

The DSC Single-Plug Cement Head can be connected with casing.

Technical Features

l   Main parts are made from AISI4145H alloy steel. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.

l   The Balance Pipe eliminates the sucking to plug due to U-Tube effect and ensures easy release of the plug retainer..

l   The Plug Indicator indicates the plug release action.

l   It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads. LCSG (LTC) CSG (STC) BCSG (BTC) TP-CQ TS3SB TP-NF VAM TOP NEW VAM

Technical Parameters

Specifications in.	Working Pressure MPa	I.D. of Plug Container mm	Length of Plug Container, mm	Plunger Assembly Number
4"	35，50，70	90	300	Single
4½"	35，50，70	100	320	Single
5"	35，50，70	110	400	Single
5½"	35，50，70	125	400	Single
6⅝"	35，50，70	150	450	Single
7"	35，50，70	160	450	Single
7⅝"	35，50，70	175	450	Single
8⅝"	35，50，70	200	500	Single
9⅝"	35，50，70	225	550	Single
10¾"	21，35，50	250	550	Single
11¾"	21，35，50	275	550	Double
13⅜"	21，35，50	320	600	Double
16"	14，21，35	386	650	Double
18⅝"	14，21，35	452	650	Three
20"	14，21，35	485	650	Three
