Model Ssc Double Plug Cement Head

Product Detail

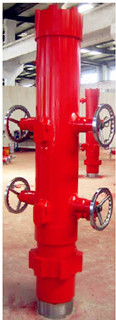

Model Ssc Double Plug Cement Head

Special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously, and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.

Technical Features

l   Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage tool cementing.

l   Double balance pipe is developed.

l   Positive lever indicates plug releasing.

l   Main parts are made from AISI4145H alloy steel.

l   Top cover and union nut with large trapezoidial-threaded, it makes the tool convenient to disassemble and carry.

l   It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads. LCSG (LTC) CSG (STC) BCSG (BTC) TP-CQ TS3SB TP-NF VAM TOP NEW VAM

Technical Parameters

Specifications in.	Working Pressure MPa	I.D. of Plug Container mm	Length of Plug Container, mm
			Top& Bottom Plug		Stage Tool
			One	Two	One	Two
4"	35，50，70	90	240	240	300	300
4½"	35，50，70	100	240	240	320	320
5"	35，50，70	110	260	260	400	400
5½"	35，50，70	125	260	260	400	400
6⅝"	35，50，70	150	290	290	450	450
7"	35，50，70	160	310	310	450	450
7⅝"	35，50，70	175	310	310	450	450
8⅝"	35，50，70	200	310	310	500	500
9⅝"	35，50，70	225	330	330	550	550
10¾"	21，35，50	250	360	360	550	550
11¾"	21，35，50	275	360	360	550	550
13⅜"	21，35，50	320	410	410	600	600
16"	14，21，35	386	510	510	650	650
18⅝"	14，21，35	452	510	510	650	650
20"	14，21，35	485	510	510	650	650
