Model Dct Casing Centralizer

Product Detail

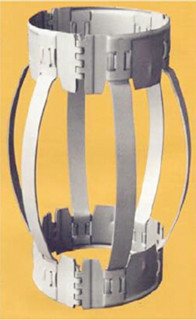

Model Dct Casing Centralizer

Super-strengthen spring steel is applied to centralize casing in wellbore, and improves cementing quality.

Technical Features

l   Every attachment is pressed into shape by moulding instead of welding and rivet.

l   3-Section structure for easy transport.

l   Starting force and restoring force conform to API standards.

l   Easy-and-convenient to use.

l   Alternative turbulence plates can effectually improve displacement efficiency.

Technical Parameters

Specifications

20"

18⅝"

16"

14"

13⅜"

12¾"

10¾"

9⅝"

7⅝"

7"

6⅝"

5½"

5"

4½"

Casing Size

20"

18⅝"

16"

14"

13⅜"

12¾"

10¾"

9⅝"

7⅝"

7"

6⅝"

5½"

5"

4½"

Open Hole Size

24" 26"

22" 24"

20" 22"

18"

17½"

17½"

12¼"

12¼"

9⅞"

8½"

8½"

8 ½"

6½"

6"

O.D., mm

650 714

590 680

550 613

484

470

466

370

375

273

252

245

256

190

181



Casing Spring Centralizer

Technical Parameters



Type	Inside diameter	Height	Total height	Largest diameter
5“*12-1/4”	128-131	105	690	330
5-1/2”*8-1/2”	142-148	55	650	225
6”*8-1/2”	156-158	55	650	235
7-5/8”*9-5/8”	197-201	55	650	275
9-5/8”*12-1/4”	250-255	55	650	330
5-1/2”*8-1/2”	142-148	110	650	225
7”*9-5/8”	181-186	110	650	255
7”*8-1/2”	181-186	110	650	235
5”*6-1/2”	128-131	110	650	175
7-5/8”*9-1/2”	196-200	110	650	250
5”*6-1/4”	130-132	110	650	170
9-5/8”*12-1/4”	250-255	110	650	330
5-1/2”*8-1/2”	142-148	55	650	225
