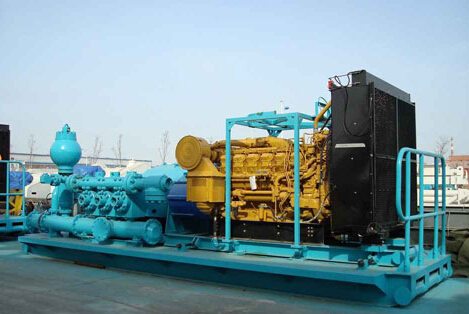

Unitized Mud Pump
Design Principle: Jinan Diesel+ Hydraulic Transmission+ Mud Pump
General Specifications
Mud Pump Model: F-1600
Mud Pump Maximum Stroke: 12"
Mud Pump Maximum Working Pressure: 5,000 psi
Mud Pump Gear Ratio: 4.206:1
Mud Pump Gear Type: Herringbone
Mud Pump Valve Pot Model: API No.7
Mud Pump Suction Flange Size: 12"
Mud Pump Discharge Flange Size: 5-1/8"
Pulsation dampener Model: KB-75
Diesel Model: A12V190PZL
Diesel Rated Power and Speed: 1200 KW , 1300/1500 RPM
Hydraulic transmission:
A-YOZJ750-30FLsh
B- RATED POWER: 1200 KW
C- RETAED ROTARY SPEED: 650r/min
D- Rated Efficiency: ≥96%
Charging Pump Model/Seal Type: SB6×5-12/Mechanical Seal
Charging Pump Motor Power: 73 HP, 460 V, 60 Hz
Charging Pump Displacement: 780 GPM
Charging Pump Head Lift: 102 ft
Charging Pump Speed: 1,750 rpm
