Quick-Detachable Casing Protector

Product Detail

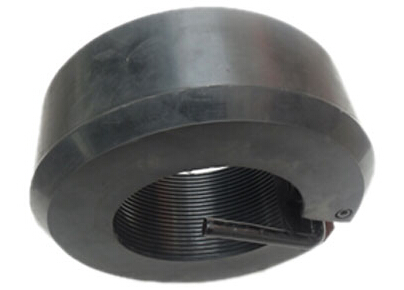

    Quick-Detachable Casing Protector1430379230498867.jpg
    Quick-detachable casing protector is a manual device to protect outer thread of casing. This protector is designed with simple configuration and solid stuff for easy operation, this protector consist of solid and durable synthetic rubber and high quality steel plate, steel plate is fixed with bulge wheel lock assembly, pulling handle can made the bulge wheel lock assembly to lock or open.
    Quick-detachable casing protector is applicable for casing with BTC, LTC, STC, and VAM thread.





    specifications - Quick-detachable casing protector

    Model

    Product Code

    Applicable Diameter of Tubulars(in)

    Model

    Product Code

    Applicable Diameter of Tubulars(in)

    2 3/8

    H106001

    2 3/8 Tubing

    7 5/8

    H219401

    7 5/8 Casing

    2 7/8

    H107301

    2 7/8 Tubing

    8 5/8

    H221901

    8 5/8 Casing

    3 1/2

    H108901

    3 1/2 Tubing

    9 5/8

    H224501

    9 5/8 Casing

    4 1/2

    H111401

    4 1/2 Tubing

    10 3/4

    H227301

    10 3/4 Casing

    5

    H112701

    5 Tubing

    13 3/8

    H234001

    13 3/8 Casing

    5 1/2

    H114001

    5 1/2 Tubing

    16

    H240601

    16 Casing

    6 5/8

    H116801

    6 5/8 Tubing

    18 5/8

    H247301

    18 5/8 Casing

    7

    H117801

    7 Tubing

    20

    H250801

    20 Casing

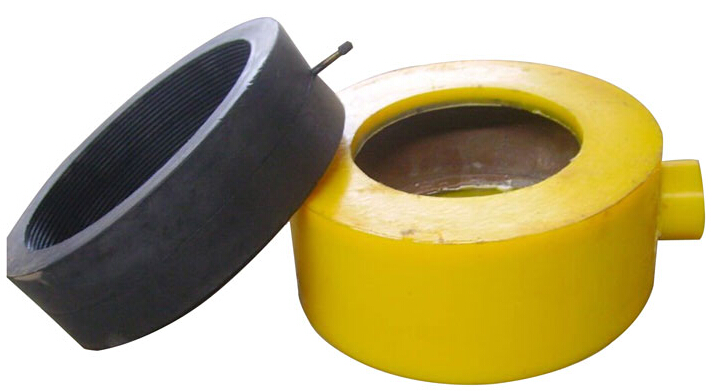

    Inflatable quick-release protector1430378414483677.jpg

    Compound inflation thread protector is mounted on the casing end, protection the casing thread when casings are removed during well drilling and work over, which cuts down the consumption and operating cost. Partially made from nanometer material, the product offers reliable performance, fast inflation, good air-tightness, easy mounting and dismantling and high use value.
    Feature:
    The product consists of pneumatic tyre and housing with new technology of polyurethane and steel compression casting, firm stickup, beautiful outer body, wear-resistance and good anti-corrosion property.


    specifications - Inflatable quick-release protector

    Serial No.

    Sizes

    W.P.

    Inflation   time(S)

    Deflation   time(S)

    1

    4-1/2"-5"

    0.7-1Mpa
      100-150PSi

    2

    2~3

    2

    5-1/2"

    0.7-1Mpa
      100-150PSi

    2~3

    3~4

    3

    7"

    0.7-1Mpa
      100-150PSi

    3~4

    4~5

    4

    9-5/8"

    0.7-1Mpa
      100-150PSi

    5

    6~7

    5

    13-3/8"

    0.7-1Mpa
      100-150PSi

    7~8

    9~10

    6

    20"

    0.7-1Mpa
      100-150PSi

    10

    12~13
