X-over Sub

Product Detail

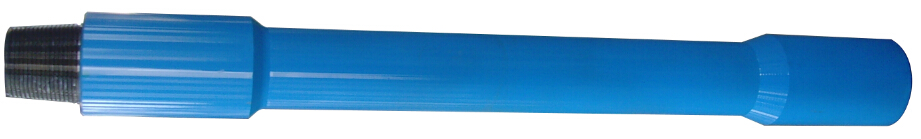

    Lift Sub

    A Lift Sub enables the safe, efficient handling of straight OD tubulars such as drill collars, shock tools, jars, directional equipment and other tools by using the drill pipe elevators,default length 36".



    Saver Sub
    Saver Sub is used to extend the life of the Kelly by taking the connection wear each time it is make-up to a drill stem component. The saver sub connection is sacrificed because it can be easily repaired or inexpensively replaced. The saver sub can be equipped with a rubber protector to reduce BOP equipment and casing wear resulting from contact damage with a lower Kelly connectiondefault long,default length 24".

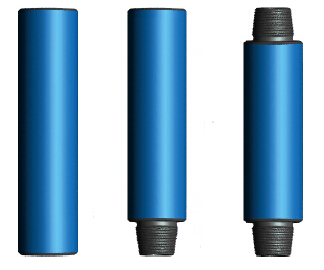

    Straight OD Sub
    Straight OD Sub is used to connect drill stem members that have a similar outside diameter. The drill bit, downhole tools, heavy weight drill pipe and drill pipe can be crossed over using a straight OD sub,,default length 36".

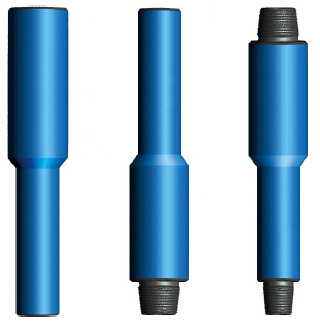

    Reduced Section Sub
    Reduced Section Sub is used to connect drill stem members that have different diameters that warrant the cross-sectional change necessary to accommodate different connections. This sub would be used to crossover large OD drilling tools or a tapered drill collar string,,default length 48".
