Arrow Type Back Pressure Valve
Product Detail

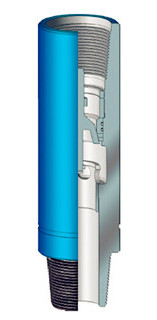

Arrow Type Back Pressure Valve
Arrow Type Back Pressure Valve is an important tool preventing of blowout.
The design of the Arrow Type Back Pressure Valve allows for an on-site determination of back pressure to be set at surface.
Features and Benefits
● Metal to metal sealing;
● Simple design allows easy maintenance.
When ordering please specify
● Size;
● Thread connection.
Note: Arrow Type Back Pressure Valves are not ideally suited for cementing or abrasive fluids.
Technical Parameters
Model | Product Code | O.D.(mm) | Connection | I.D.(mm) | Working Pressure(MPa) |
FJ229 | F042291 | 229 | 7 5/8 REG | 82 | 70(35) |
FJ203 | F042031 | 203 | 6 5/8 REG | 82 | 70(35) |
FJ178 | F041784 | 178 | 5 1/2 FH | 82 | 70(35) |
FJ168 | F041681 | 168 | NC50 | 82 | 70(35) |
FJ165 | F041652 | 165 | NC50 | 82 | 70(35) |
FJ159 | F041591 | 159 | NC46 | 70 | 70(35) |
FJ121 | F041211 | 121 | NC38 | 56 | 70(35) |
FJ105 | F041051 | 105 | NC31 | 44 | 70(35) |
FJ89 | F040891 | 89 | NC26 | 33 | 70(35) |
