Lifting Cap

Product Detail

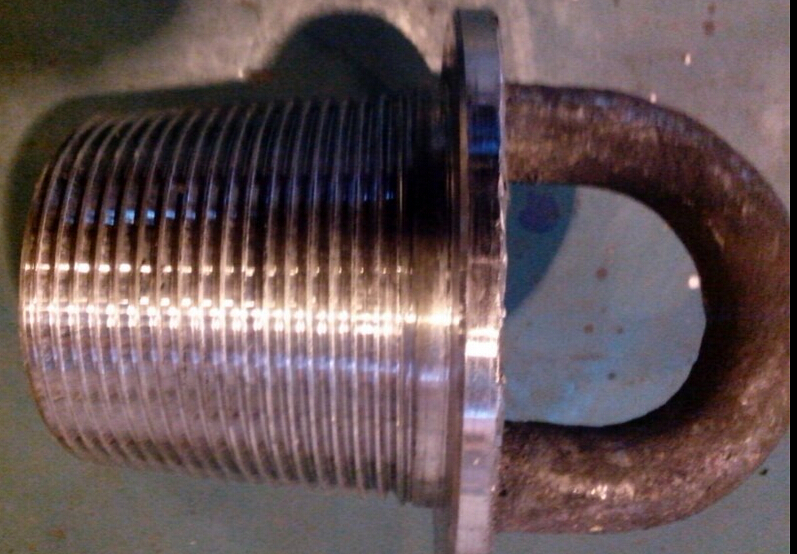

Lifting Cap

The lifting caps are tools for lifting of drilling tools, such as drill collars, stabilizers.



specifications - Lifting cap

Model	Product Code	O.D. (mm)	Seal sleeve (mm)	Top Connection (BOX)	Bottom connection	Pump Pressure of shear-off shear pin	O.D. of Steel ball (mm)
Connection	Product Code	O.D. (mm)	Length (mm)	Connection	Product Code	O.D. (mm)	Length (mm)
7 5/8 REG Pin	J061501	210	290	7 5/8 REG Box	J061601	230	290
6 5/8 REG Pin	J062301	190	280	6 5/8 REG Box	J061301	200	280
4 1/2 REG Pin	J062201	145	260	4 1/2 REG Box	J060805	160	270
3 1/2 REG Pin	J060401	100	220	3 1/2 REG Box	J062103	110	260
2 3/8 REG Pin	J060102	80	190	2 3/8 REG Box	J062102	110	200
NC50 Pin	J060802	155	270	NC50 Box	J060804	160	260
NC46 Pin	J060801	150	270	NC46 Box	J060803	160	260
NC38 Pin	J060501	115	260	NC38 Box	J060602	120	270
NC31 Pin	J060402	100	210	NC31 Box	J060601	120	220
NC26 Pin	J060201	89	200	NC26 Box	J062101	110	200
2 7/8 EUE Pin	J060105	80	220	2 7/8 EUE Box	J060303	95	200

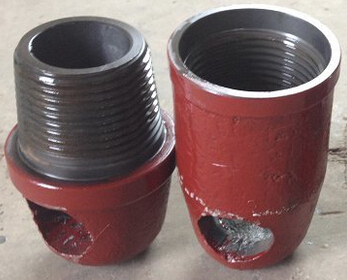

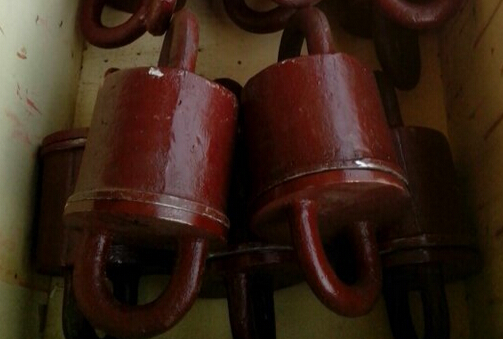

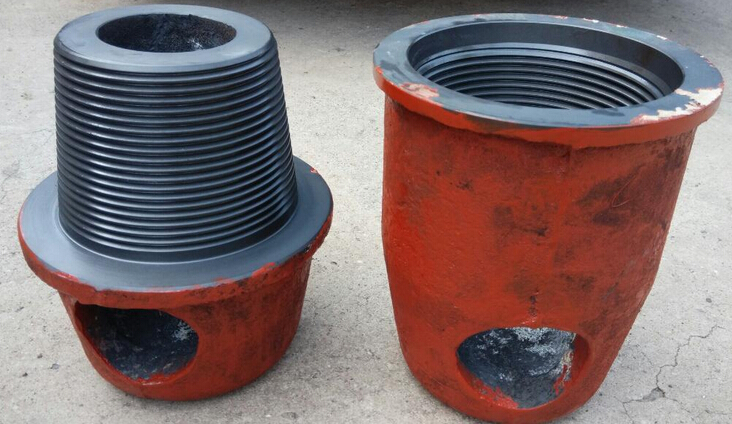

 Casting Lifting Cap
